Q235 hot dipped galvanized ring lock scaffolding system vertical
level diagonal brace spigot base for project
Introduction and feature for ring lock scaffolding system
Ring lock scaffolding system is evolving from LAYHER scaffold from
Germany, this is very flexible modular scaffolding system, nowadays
become more and more popular in the construction fields,
traditional ring lock scaffolding system are composed of standard,
ledger, vertical diagonal, horizontal diagonal, transom, base
collar, spogit, truss ledger and so on, there are hundreds of
accessories for ring lock system, it can be widely used in many
irregular construction sites and has many advantages as below:
1. Safer and more stable than other scaffold system.
2. With hot dip galvanized finish can expand life span to 20 years.
3. Easy for erection and dismantlement, convenient and can save
much time & labor.
4. Compared with cuplock can save 1/3 steel around, save time &
time & labor.
5. With good look in project image.
Specifications for ring lock scaffolding system
| Name | O.D(mm) | Thickness(mm) | Length(mm) | Finish | Weight(kg) |
| Ring lock standard | 48.3 | 3.25 | 1000 | HDG, painted | 4.65 |
| Ring lock standard | 48.3 | 3.25 | 2000 | HDG, painted | 9.30 |
| Ring lock ledger | 48.3 | 3.20 | 1200 | HDG, painted | 4.78 |
| Ring lock ledger | 48.3 | 3.20 | 1500 | HDG, painted | 5.87 |
| Ring lock vertical diagonal | 42.3 | 2.50 | 2000*1800 | HDG, painted | 7.68 |
| Ring lock vertical diagonal | 42.3 | 2.50 | 2000*1500 | HDG, painted | 7.21 |
| Ring lock horizontal diagonal | 48.3 | 3.00 | 1200*1500 | HDG, painted | 7.40 |
| Ring lock horizontal diagonal | 48.3 | 3.00 | 1200*1800 | HDG, painted | 8.28 |
| Ring lock spigot | 38 | 3.00 | 230 | HDG, painted | 0.61 |
| Ring lock spigot | 38 | 3.00 | 250 | HDG, painted | 0.66 |
| Ring lock base collar | 48.3 | 3.25 | 300 | HDG, painted | 1.59 |
| Ring lock base collar | 48.3 | 3.25 | 200 | HDG, painted | 1.83 |
| Ring lock handrail | 33 | 2.00 | 500 | HDG, painted | 7.05 |
Remarks: we can do any sizes as the requirement of customers.
Production process for ring lock scaffolding system
All ring lock scaffolding parts are made of pipe and accessories

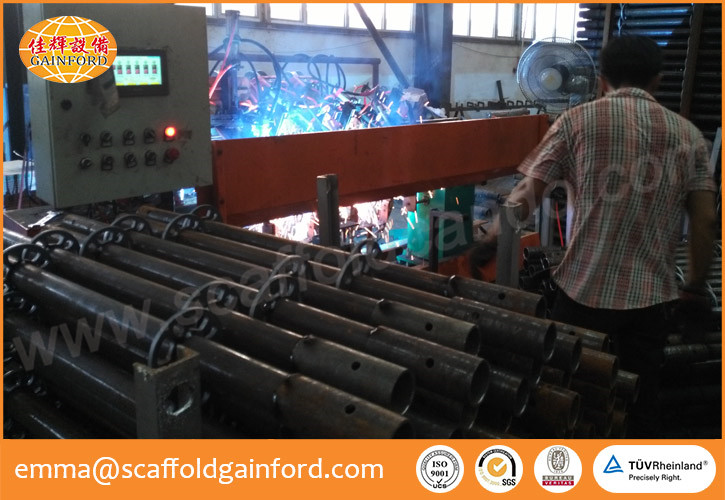

Pipes and accessories are welded by advanced automatic welding
machine or our skilled workers.

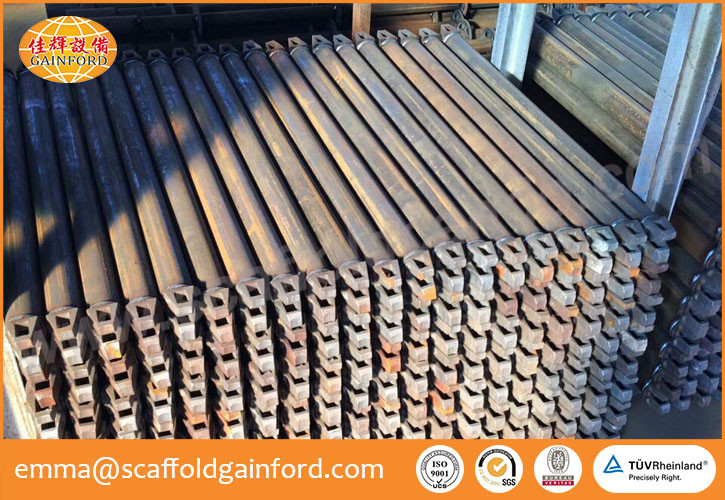

All products after welding then become this:

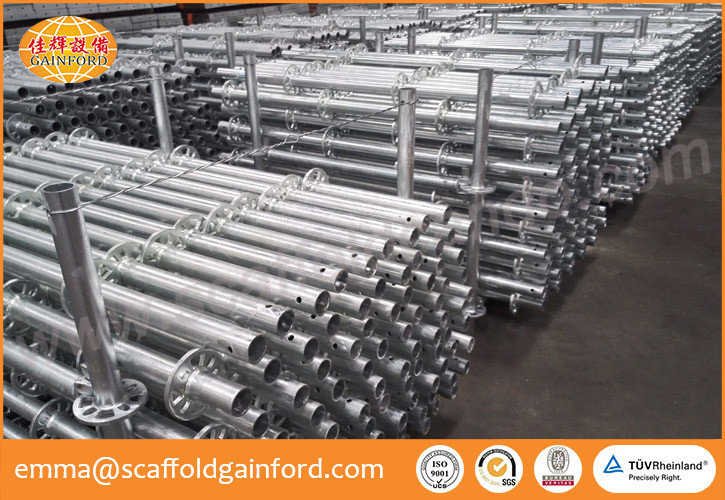

After hot dipped galvanizing, they become this:
Packing and loading details for ring lock scaffolding system
We have the following two types of packing for ring lock
scaffolding:
Option 1. Bundles package: with steel belt to fix and load by forklift, this type of pacakge
can save space.
Option 2. Iron pallet or make products themselves to a structure frame, then put all products in it, this kind of package will be very
nice looking, but cannot save much space.
Dear customer, we can also pack these products as your request.
Certification for ring lock scaffolding system

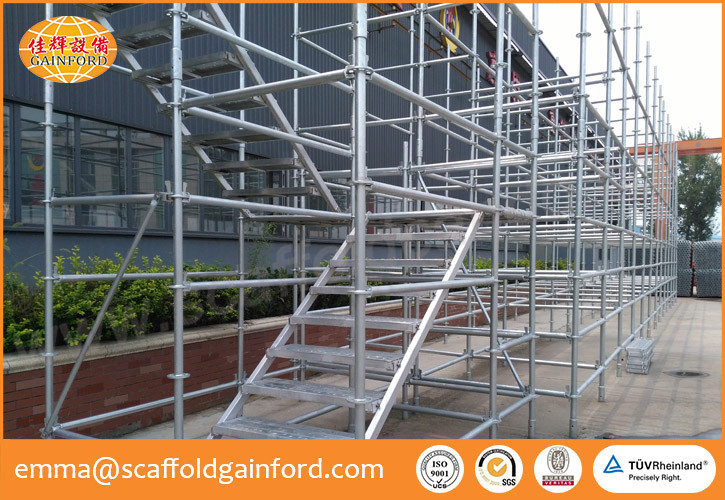

Application for ring lock scaffolding system
As the most practical modular scaffolding system, ring lock
scaffolding can be used in many fileds, such as:
#1. Brigde building
#2. Tunnel
#3. Viaduct
#4. Water tower
#5. Hydropower plant
#6. Oil refinery
#7. Stage set-up
#8. Sports statium
#9. Civil construction and so on
Supportings and advantages with Gainford Scaffolding
1. HIGH QUALITY PRODUCTS- We are the Hongkong Enterprise, we focus on the high quality
control all the time. We have professional production team, can
produce each piece of product with qualified standard.
2. THE LOWEST & COMPETITIVE PRICES- We sincerely do business with every customer with suporting you
the lowest prices, make you become more competitive from the fierce
competitions, help to create value & profit for you. We'd love to
make friends with you! You happy then we are happy.
3. PUNCTUAL DELIVERY TIME- We are the Hongkong Enterprise,our factory is in Dongguan, which
is near to Shenzhen port, from Shenzhen to your port can save half
transportation time than any China North port , can reach your
promotion season and no-delay for your constrution time.
4. THE BEST SERVICES- We have the professional exporting team can be available to offer
you service at any time everyday! And we have skilled scaffolding
experts, can solve any problems no matter the single products or
the construction solution!
5. WE NEVER BE AFFECTED BY LIMITATION PRODUCTION CONTROL- Because we are southern factory in China, no fog haze and
governament control measures here, we have a blue sky here and we
can produce any product at any time for you!
We sincerely hope to cooperate with you, my dear friends!
Any scaffolding enquiry is welcome and appreciated~ Let us to be
your warehouse and factory in China!
